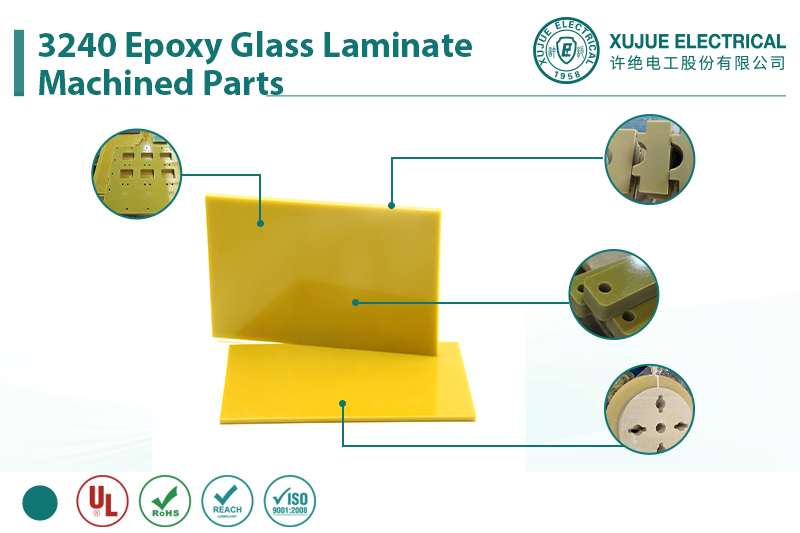

In modern electrical and industrial equipment, reliable insulation materials are essential for ensuring operational safety, electrical performance, and long-term durability. Among the most widely used insulation materials, 3240 Epoxy Glass Laminate Sheet has become a preferred choice for manufacturing custom electrical insulation components.
3240 epoxy glass laminate is produced by laminating alkali-free woven glass fiber cloth with epoxy resin adhesive under high temperature and pressure. The material offers excellent dielectric properties, high mechanical strength, dimensional stability, and good heat resistance, making it ideal for precision CNC machining.
Through advanced machining processes, 3240 sheets can be transformed into complex insulation parts used in transformers, motors, generators, switchgear, and other high-voltage electrical systems.
Excellent Electrical Insulation Performance
3240 epoxy laminate provides outstanding dielectric strength and insulation reliability, making it suitable for high-voltage electrical applications where safety and performance are critical.
High Mechanical Strength
The glass fiber reinforced structure delivers excellent compressive, tensile, and flexural strength, ensuring reliable performance under mechanical stress.
Class B Heat Resistance
With a continuous operating temperature of up to 130°C, 3240 epoxy glass laminate meets Class B insulation requirements**, making it suitable for demanding industrial environments.
Dimensional Stability
The material maintains precise dimensions even when exposed to temperature fluctuations, vibration, and electrical loads.
Superior Machinability
3240 epoxy glass laminate can be CNC machined into highly customized designs, including:
• Precision drilled holes
• Slots and grooves
• Insulating spacers
• Support blocks
• Flanges
• Bushings
• Structural insulation components
• Complex custom profiles
Modern electrical equipment often requires customized insulation components that cannot be produced using standard stock materials alone.

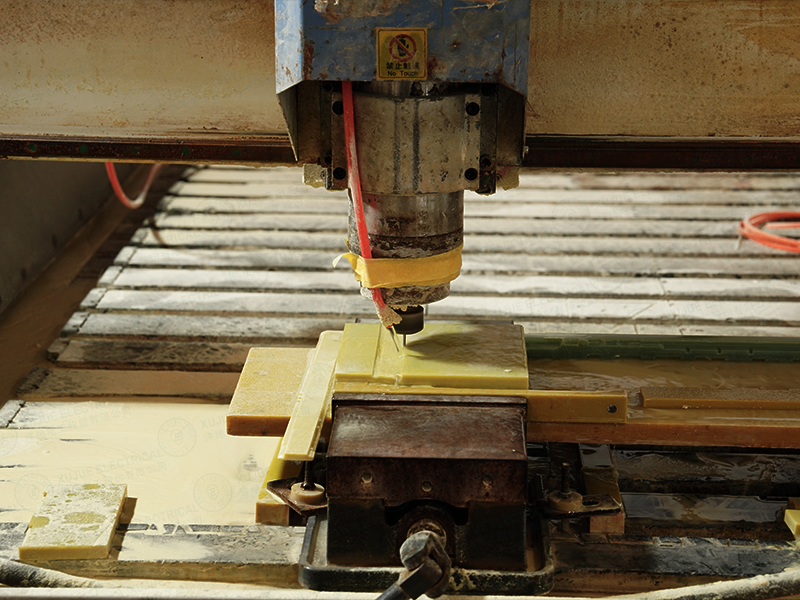

Using advanced CNC machining technology, manufacturers can produce:
• Custom transformer insulation parts
• Motor insulation components
• Generator insulation supports
• Electrical switchgear insulation pieces
• High-voltage insulating assemblies
• Precision fiberglass epoxy parts
Whether customers require prototype development, small-batch production, or large-scale manufacturing, CNC machining ensures consistent accuracy and repeatability.
Dry-Type Transformers
3240 insulation components are extensively used in dry-type transformers for:
• Insulating barriers
• Spacer blocks
• Terminal insulation parts
Their excellent dielectric strength helps improve transformer safety and reliability.
Electric Motors and Generators
Motor and generator manufacturers rely on 3240 epoxy fiberglass insulation components for:
• Slot wedges
• Terminal boards
• Insulating brackets
• Rotor and stator support parts
• Structural insulation components
These parts help maintain insulation integrity under thermal and mechanical stress.
Electrical Equipment Manufacturing
3240 epoxy laminate is commonly used in:
• Switchgear systems
• Control cabinets
• Power distribution equipment
• Circuit breaker assemblies
• Electrical insulating structures
Its combination of insulation performance and mechanical strength makes it suitable for demanding industrial applications.
Custom-machined insulation parts offer several advantages over standard off-the-shelf products:
Improved Equipment Performance
Components are manufactured according to exact engineering drawings, ensuring optimal fit and function.
Reduced Assembly Time
Precision machining minimizes adjustments during installation, improving manufacturing efficiency.
Enhanced Reliability
Accurate tolerances help maintain insulation clearances and mechanical integrity throughout the service life of the equipment.
Flexible Design Options
Complex geometries and special designs can be produced to meet unique project requirements.
When selecting a supplier for custom electrical insulation components, consider the following factors:
• Material quality and certification
• CNC machining capabilities
• Dimensional accuracy
• Production capacity
• Technical support
• Quality inspection procedures
• Experience in transformer and motor industries
A professional manufacturer should be able to provide complete solutions from material selection to finished machined insulation parts.
As electrical equipment continues to demand higher efficiency, safety, and reliability, 3240 Epoxy Glass Laminate Machined Parts remain one of the most trusted solutions for electrical insulation applications.
Combining excellent dielectric performance, mechanical strength, Class B heat resistance, and precision CNC machinability, 3240 epoxy fiberglass laminate is widely used in transformers, motors, generators, switchgear, and industrial electrical equipment worldwide.
If you are looking for a reliable supplier of custom CNC machined electrical insulation components, 3240 epoxy glass laminate offers a proven and cost-effective solution for both prototype and high-volume production requirements.
