Bakelite Sheet, also known as Phenolic Paper Laminated Sheet, is a widely used electrical insulation material manufactured by laminating electrical-grade paper with phenolic resin under heat and pressure.
Thanks to its good dielectric properties, mechanical strength, and easy machinability, Bakelite Sheet remains a popular choice for electrical panel boards, control cabinets, and low-voltage switchgear.

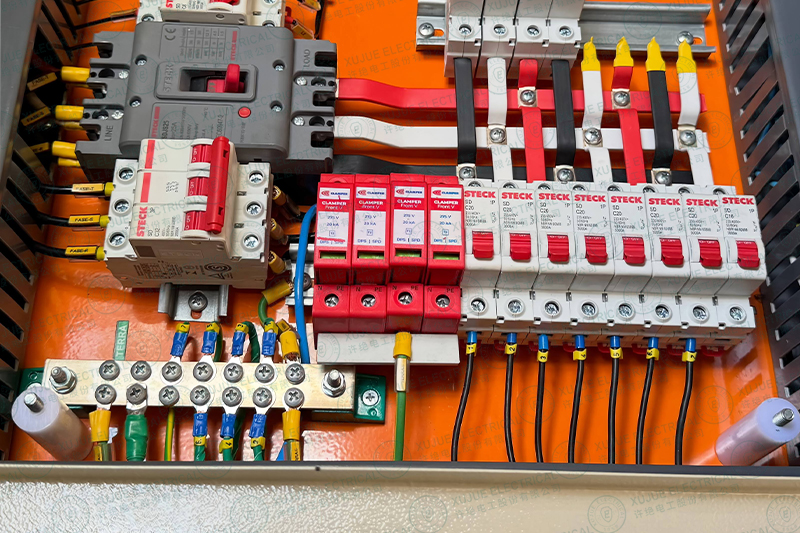

Electrical panel boards contain busbars, circuit breakers, terminals, and other energized components that require reliable insulation and structural support.
Bakelite Sheet helps:
• Provide electrical insulation between conductive parts
• Improve operational safety
• Reduce the risk of short circuits and leakage currents
• Support mechanical assembly inside electrical cabinets
• Extend the service life of electrical equipment
Its balance of performance and cost makes it a practical solution for many panel manufacturers.
Busbar Support Components
Bakelite is frequently machined into busbar support parts that help maintain electrical clearance while providing mechanical stability.
Insulation Barriers and Partitions
Panel builders use Bakelite Sheet to create insulation barriers between phases and separate different electrical sections within a cabinet.
Terminal Boards
Terminal boards made from Bakelite offer reliable insulation and secure mounting for electrical connections.
Equipment Mounting Panels
Electrical devices such as relays, contactors, and control components can be mounted on Bakelite panels to improve insulation and safety.

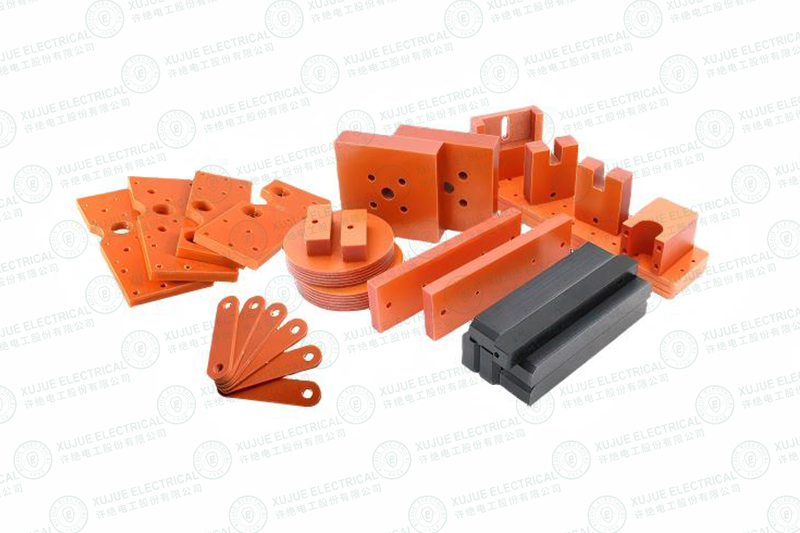

Custom CNC Machined Parts
Many manufacturers require custom insulation components, including:
• Insulation spacers
• Support blocks
• Protective covers
• Insulation washers
• Structural insulation parts
Precision CNC machining allows Bakelite Sheet to be fabricated according to customer drawings and technical requirements.
Key advantages include:
• Good electrical insulation performance
• Reliable mechanical strength
• Easy drilling, cutting, and CNC machining
• Cost-effective for large-scale production
• Stable performance in dry electrical environments
These characteristics make Bakelite a trusted material for electrical panel board insulation and switchgear applications.
When selecting Bakelite Sheet for electrical panel projects, it is important to consider:
• Consistent material quality
• Precision machining capability
• Custom manufacturing support
• Stable supply for volume orders
• Experience in electrical insulation applications
A qualified manufacturer can provide both standard sheets and custom-machined insulation parts for panel board production.
Despite the development of newer insulation materials, Bakelite Sheet continues to be widely used in electrical panel boards due to its insulation performance, machinability, and cost efficiency.
From busbar supports and insulation barriers to terminal boards and custom CNC-machined components, Bakelite remains a reliable solution for modern electrical distribution systems.
