In modern power systems, oil-immersed transformers require materials that combine mechanical strength, electrical insulation stability, and long-term thermal resistance. Among various options, Electrical Laminated Wood has become one of the most widely used Transformer Insulation Materials for structural support inside transformers.
This article explains why transformer manufacturers prefer laminated wood, its key advantages, and how it performs as a critical part of Transformer Structural Components.

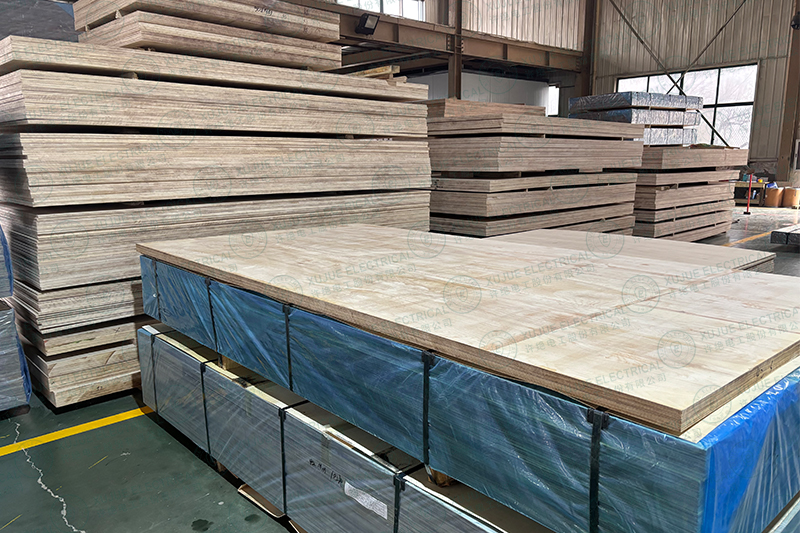

Electrical Laminated Wood is a high-performance insulating material made by compressing and bonding layers of selected wood veneers under high temperature and pressure using insulating resin. The result is a dense, mechanically strong, and electrically stable composite material.
Unlike ordinary wood, it is engineered specifically for electrical applications, especially in oil-immersed transformer environments where both insulation and structural stability are required.
As a reliable Transformer Insulation Material, it is widely used in spacer blocks, support beams, clamping rings, and other load-bearing components.
1. Excellent Mechanical Strength for Structural Support
Oil-immersed transformers operate under continuous electromagnetic force and vibration. Electrical Laminated Wood provides:
• High compressive strength
• Stable dimensional performance under pressure
• Resistance to deformation over long service life
This makes it ideal for Transformer Structural Components such as core clamps and winding supports.
2. Superior Electrical Insulation Performance
One of the main reasons manufacturers choose this material is its excellent dielectric strength. It helps to:
• Prevent current leakage between conductive parts
• Improve insulation reliability in oil environments
• Reduce risk of partial discharge
Compared with metal-based supports, Electrical Laminated Wood significantly improves overall transformer safety.
3. Excellent Oil Resistance and Thermal Stability
In oil-immersed transformers, materials must remain stable in insulating oil for decades. Electrical Laminated Wood offers:
• Strong resistance to transformer oil degradation
• Stable performance under elevated temperatures
• Low moisture absorption after treatment
This ensures long service life even in demanding power grid conditions.
4. Easy Machinability for Customized Parts
Transformer manufacturers often require customized insulation parts. Electrical Laminated Wood can be easily processed into:
• Clamping rings
• Support blocks
• Spacer bars
• Insulation wedges
As a result, many OEM projects rely on it for precision-engineered Transformer Structural Components.
5. Cost-Effective Alternative to Engineering Plastics
Compared with advanced composites or engineering plastics, Electrical Laminated Wood offers:
• Lower material cost
• Reliable supply chain
• Proven long-term performance in transformers
This makes it a preferred choice for large-scale transformer production.
Electrical Laminated Wood is widely used in:
• Core support structures
• Winding clamping systems
• Insulation spacing components
• Lead support and fixing parts
Its combination of strength and insulation makes it essential in high-voltage transformer design.
When selecting a Laminated Wood Supplier, transformer manufacturers typically evaluate:
• Material density and uniformity
• Electrical insulation performance
• Oil resistance test results
• CNC machining capability
• Long-term supply stability
A professional supplier ensures consistent quality of Transformer Insulation Materials, which directly affects transformer reliability and safety.
As transformer technology continues to evolve, the demand for high-performance insulation materials is increasing. Electrical Laminated Wood remains a proven and cost-effective solution for structural and insulating needs in oil-immersed transformers.
With its excellent mechanical strength, electrical insulation properties, and machinability, it plays a critical role in modern Transformer Structural Components and continues to be the preferred choice for transformer manufacturers worldwide.
If you are looking for a reliable Laminated Wood Supplier, choosing a manufacturer with stable quality control and engineering experience is essential for long-term transformer performance.
