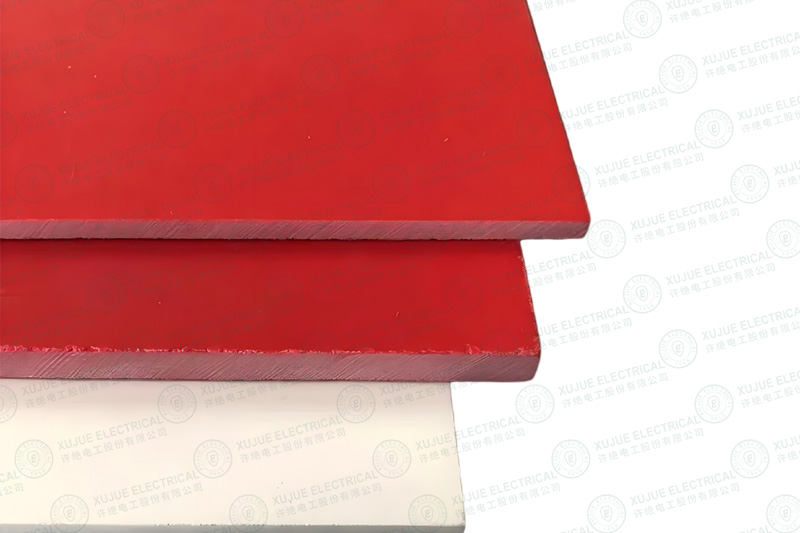

GPO-3 (also known as UPGM-203) is a high-performance glass polyester laminate sheet widely used in electrical insulation systems. It is manufactured by combining glass fiber mat with unsaturated polyester resin under high temperature and pressure, resulting in a rigid, durable, and electrically reliable insulation material. Because of its excellent dielectric strength, mechanical stability, and flame resistance, GPO-3 has become a standard material in medium and high-voltage electrical applications.
One of the most important advantages of GPO-3 is its excellent electrical insulation performance. It maintains stable dielectric strength even under humid or harsh environments, making it suitable for long-term use in power systems. This reliability helps reduce the risk of electrical failure and improves operational safety.
In terms of thermal performance, GPO-3 offers high heat resistance, typically supporting continuous operation in Class F (155°C) or higher environments depending on application requirements. This makes it suitable for equipment that generates heat during operation, such as transformers and switchgear.
Mechanically, GPO-3 provides high strength and rigidity. Compared to traditional phenolic laminates, it offers better impact resistance and structural stability. This makes it ideal for load-bearing insulation components in electrical assemblies.
Another important feature is its flame retardant property, often meeting UL94 V-0 standards. This ensures that the material can self-extinguish when exposed to fire, significantly improving system safety in critical electrical installations.

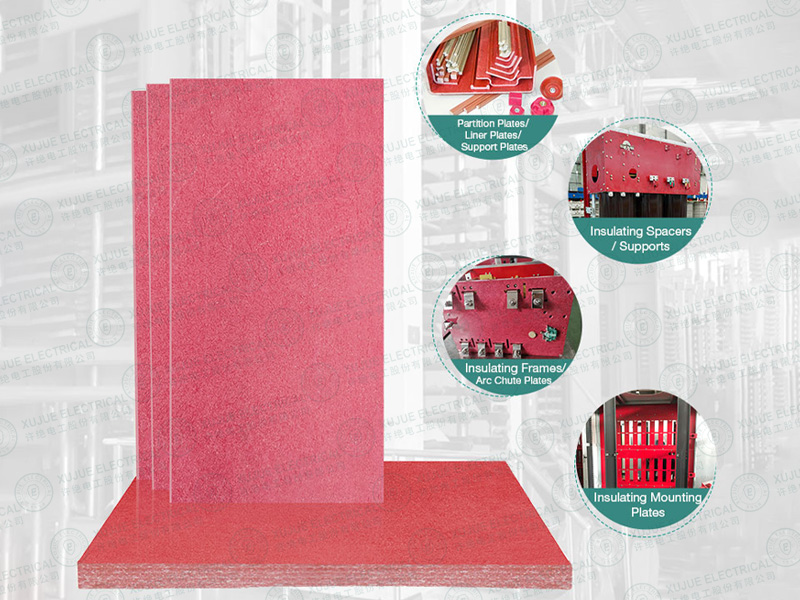

GPO-3 is widely used across multiple electrical and industrial sectors due to its balanced performance.
In high-voltage switchgear systems, it is commonly used as insulating barriers, support plates, and arc-resistant structural components. Its high dielectric strength ensures safe separation between conductive parts.
In transformer manufacturing, GPO-3 is used for insulation supports and structural components that require both mechanical strength and electrical insulation. It helps improve the reliability and lifespan of transformer systems.
In power distribution cabinets and control panels, GPO-3 serves as busbar supports and phase separation barriers. Its dimensional stability ensures long-term performance without deformation.
It is also widely used in railway electrification systems, motor insulation structures, and industrial electrical equipment, where both safety and durability are critical.
Compared with other insulation materials such as FR4 or phenolic boards, GPO-3 offers a more balanced combination of mechanical strength, thermal resistance, and electrical performance. This makes it particularly suitable for demanding environments where reliability is essential.
For OEM manufacturers and electrical equipment producers, choosing GPO-3 helps improve product safety, reduce maintenance costs, and extend service life.
GPO-3 glass polyester laminate sheet is a trusted insulation material in modern electrical engineering. With its excellent dielectric properties, high mechanical strength, and flame resistance, it plays a critical role in ensuring the safety and efficiency of high-voltage electrical systems. As industrial demand for reliable insulation materials continues to grow, GPO-3 remains a key choice for transformers, switchgear, and power distribution applications.
