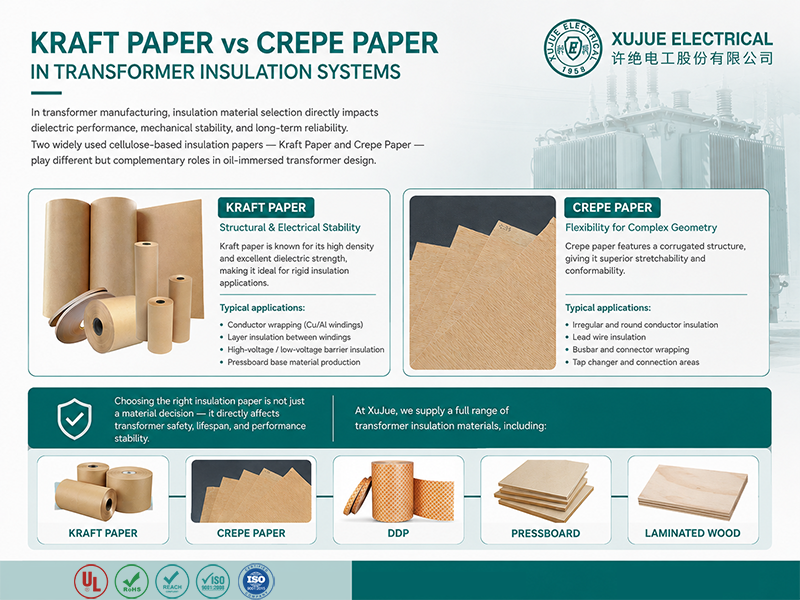

In transformer manufacturing, the insulation system plays a critical role in determining equipment reliability, service life, and operational safety. Among the various insulation materials used in oil-immersed transformers, Kraft Paper and Crepe Paper are two of the most common cellulose-based insulation papers. Although both are made from high-purity electrical-grade cellulose and are compatible with transformer oil, they serve different functions due to their unique physical characteristics.
Understanding the differences between Kraft Paper and Crepe Paper helps transformer manufacturers and engineers select the most suitable material for specific insulation applications.

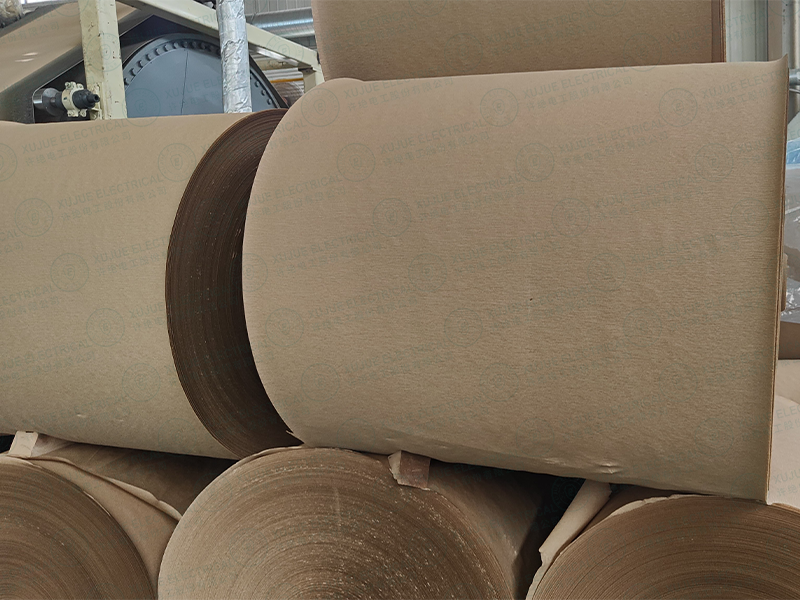

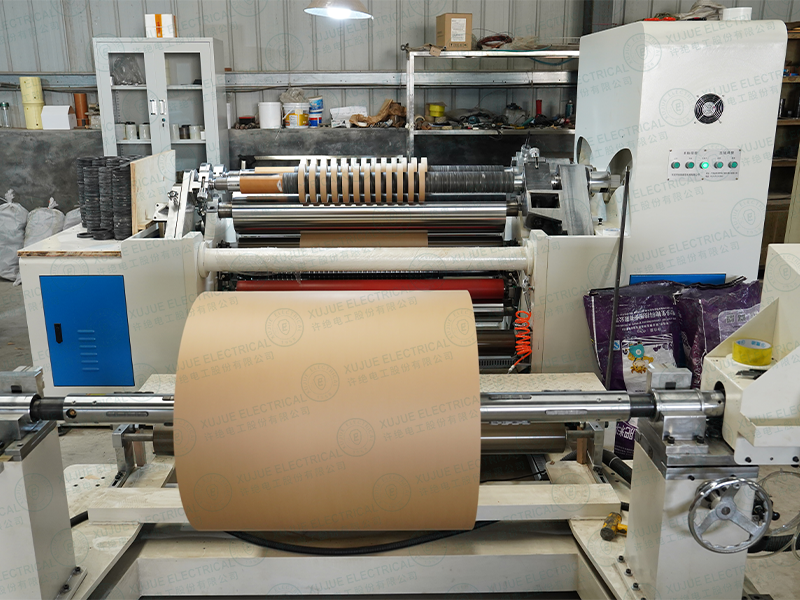

Transformer Kraft Paper is a high-density insulating paper manufactured from pure sulfate wood pulp. It offers excellent dielectric strength, mechanical strength, and oil absorption properties.
• High dielectric strength
• Smooth and uniform surface
• Excellent mechanical durability
• Good compatibility with insulating oil
• Available in multiple thicknesses
Because of its structural stability, Kraft Paper is widely used where rigid insulation and mechanical support are required.
Conductor Wrapping
Copper and aluminum conductors are often wrapped with Kraft Paper to provide primary electrical insulation between turns and layers.
Layer Insulation
Used between winding layers to prevent electrical breakdown and ensure voltage distribution.
Barrier Insulation
Installed between high-voltage and low-voltage windings to increase insulation distance and dielectric performance.
Transformer Pressboard Production
Many transformer pressboard products are manufactured from compressed layers of Kraft Paper.
Crepe Paper is produced by mechanically creping cellulose paper, creating a corrugated or wrinkled structure. This unique design allows the paper to stretch and conform to irregular surfaces.
• High flexibility and elongation
• Excellent conformability
• Superior wrapping capability
• Good oil impregnation performance
• Strong resistance to mechanical stress during winding
The stretchability of Crepe Paper makes it ideal for insulating components with complex geometries.
Round and Irregular Conductors
Crepe Paper easily adapts to conductor shapes that are difficult to cover with standard Kraft Paper.
Lead Wire Insulation
Transformer lead wires often require flexible insulation capable of handling bends and movement.
Busbar Wrapping
Used for insulating busbars and connectors where tight wrapping is necessary.
Tap Changers and Connection Areas
Crepe Paper provides reliable insulation around joints, bends, and transition points.
| Property | Kraft Paper | Crepe Paper |
|---|---|---|
| Surface Structure | Smooth | Corrugated |
| Flexibility | Moderate | Excellent |
| Stretchability | Low | High |
| Mechanical Strength | High | Medium |
| Conductor Wrapping | Standard Shapes | Irregular Shapes |
| Barrier Insulation | Excellent | Limited |
| Oil Absorption | Good | Good |
The choice depends on the specific transformer component and insulation requirement.
Choose Kraft Paper when high mechanical strength, dimensional stability, and dielectric performance are the primary concerns. It is the preferred solution for conductor insulation, layer insulation, and insulation barriers.
Choose Crepe Paper when flexibility and adaptability are essential. It is particularly suitable for lead insulation, busbar wrapping, and components with curved or irregular surfaces.
In many transformer designs, both materials are used together to achieve an optimal balance between electrical insulation, mechanical protection, and manufacturing efficiency.
Kraft Paper and Crepe Paper are both indispensable materials in transformer insulation systems. While Kraft Paper provides robust electrical and mechanical insulation, Crepe Paper offers superior flexibility for complex winding and connection structures. Selecting the right material for each application helps improve transformer reliability, extend service life, and reduce the risk of insulation failure.
