In modern power systems, transformers play a critical role in ensuring efficient transmission and distribution of electricity. As performance expectations increase—higher voltage levels, improved thermal stability, and longer service life—the choice of insulation materials becomes more strategic than ever. Among these materials, Diamond Dotted Paper (DDP) has emerged as a key component in transformer winding insulation, widely recognized for its reliability, process efficiency, and cost-performance balance.
Diamond Dotted Paper is a type of electrical insulation paper coated with thermosetting epoxy resin in a diamond-shaped dot pattern. Typically made from high-quality kraft paper, DDP combines the excellent dielectric properties of cellulose with the bonding capability of epoxy resin.
When heated during transformer coil drying or curing processes, the epoxy dots melt and bond adjacent layers of insulation, effectively creating a solid, integrated structure without the need for additional adhesives.
Key Advantages in Transformer Design
1. Enhanced Mechanical Strength
One of the main challenges in transformer operation is withstanding mechanical stresses caused by short circuits and electromagnetic forces. DDP provides strong interlayer bonding, significantly improving the structural integrity of windings and reducing displacement risks.
2. Improved Manufacturing Efficiency
Unlike traditional insulation methods that require manual application of adhesives, Diamond Dotted Paper simplifies the winding process. The pre-coated resin eliminates extra steps, improving production speed and reducing labor costs—an important factor for large-scale transformer manufacturers.
3. Excellent Thermal Performance
DDP is designed to withstand high operating temperatures, typically aligned with Class A insulation systems. Its thermal stability ensures long-term performance even under heavy electrical loads, making it suitable for modern high-capacity transformers.
4. Reliable Dielectric Properties
Electrical insulation reliability is critical in preventing failures such as short circuits or partial discharge. Diamond Dotted Paper offers consistent dielectric strength, ensuring safe operation across varying voltage conditions.
Typical Applications
Diamond Dotted Paper is widely used in:
• Power transformers
• Distribution transformers
• Dry-type transformers
• Reactors and inductors

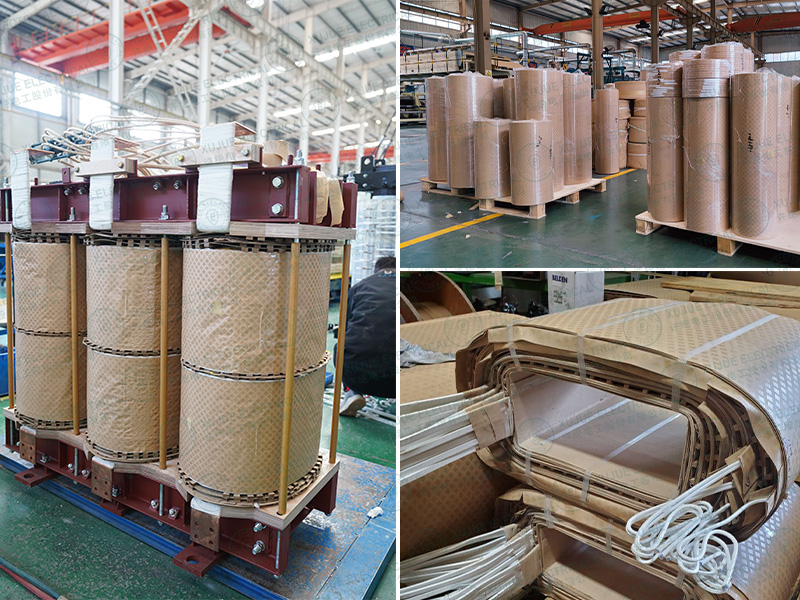

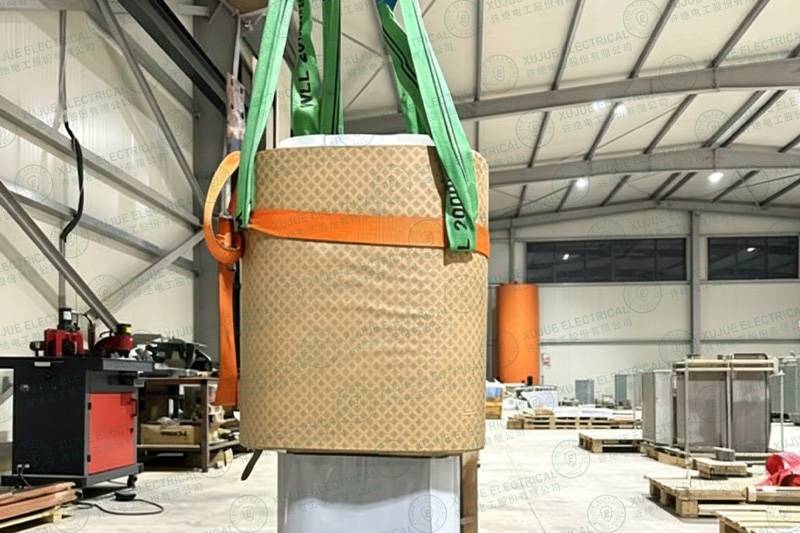

It is primarily applied as interlayer insulation in transformer windings, where both electrical insulation and mechanical bonding are required.
As transformer designs evolve toward higher efficiency, compact size, and greater reliability, materials like Diamond Dotted Paper become indispensable. Its ability to combine insulation and bonding functions into a single material aligns perfectly with modern manufacturing demands.
Additionally, with increasing emphasis on reducing maintenance and extending equipment lifespan, DDP contributes to improved long-term stability and reduced failure rates—key considerations for utilities and industrial users alike.
In today’s competitive and performance-driven transformer industry, Diamond Dotted Paper is no longer just an optional material—it is a strategic choice. By enhancing mechanical strength, simplifying manufacturing, and ensuring reliable insulation, DDP plays a vital role in meeting the demands of modern transformer design.
For manufacturers and procurement professionals alike, understanding and selecting the right insulation materials like Diamond Dotted Paper can directly impact product quality, operational reliability, and overall cost efficiency.
