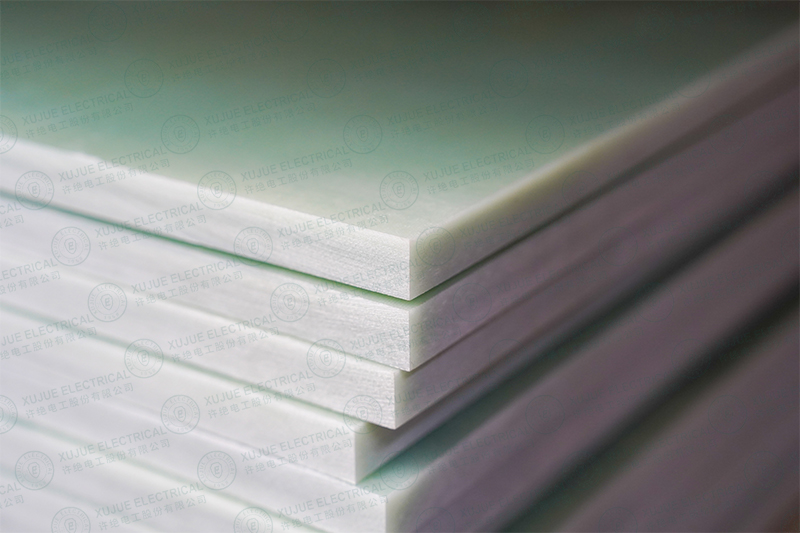

FR4 Sheet is a flame-retardant epoxy fiberglass laminate made from woven glass cloth and epoxy resin under high temperature and pressure. Known for its excellent electrical insulation, mechanical strength, and heat resistance, FR4 is widely used in transformers, motors, switchgear, electronics, and industrial equipment.
As one of the most popular electrical insulation materials, FR4 offers a reliable solution for applications requiring both insulation performance and structural strength.
Excellent Electrical Insulation
FR4 provides high dielectric strength and insulation resistance, making it suitable for medium- and high-voltage equipment.
Flame Retardant
Most FR4 sheets comply with UL94 V-0, offering enhanced fire safety compared with many traditional insulation materials.
High Mechanical Strength
The fiberglass reinforcement gives FR4 excellent dimensional stability, impact resistance, and load-bearing capability.
Heat Resistance
Standard FR4 typically operates at temperatures up to 130°C–140°C, while high-performance grades can withstand even higher temperatures.
Moisture Resistance
FR4 maintains stable electrical and mechanical performance in humid environments, making it ideal for industrial applications.
Transformers
FR4 is commonly used for:
• Insulation barriers
• Support blocks
• Structural insulation components
Electric Motors and Generators
Applications include:
• Slot wedges
• Phase separators
• End insulation parts
Switchgear and Electrical Equipment
FR4 is widely used for:
• Busbar supports
• Insulating partitions
• High-voltage insulation components
Electronics Industry
FR4 is also the most common substrate material for printed circuit boards (PCBs).
One of the biggest advantages of FR4 is its excellent machinability.
Professional FR4 CNC Machining services can produce:
• Insulation washers
• Spacer blocks
• Transformer insulation parts
• Motor insulation components
• Custom electrical insulation parts
Common machining methods include CNC milling, drilling, routing, and precision cutting according to customer drawings.
A reliable FR4 Sheet Manufacturer can provide:
• Multiple thickness options
• Custom CNC machining
• Consistent quality control
• OEM & ODM services
• Fast global delivery
Working with an experienced FR4 Insulation Sheet Supplier ensures better product performance and shorter production lead times.
FR4 Sheet is one of the most versatile electrical insulation materials available today. Combining excellent electrical insulation, flame retardancy, mechanical strength, and CNC machinability, it is widely used in transformers, motors, switchgear, electronics, and industrial applications.
If you are looking for a dependable FR4 Sheet Manufacturer or custom FR4 CNC Machining service, choosing a professional supplier can help improve both product reliability and production efficiency.
