In high-performance motors and electrical equipment, insulation materials play a critical role in ensuring safety, efficiency, and long service life. NHN Insulation Paper is one of the most widely used Class H insulation materials, especially in motors, generators, transformers, and other applications requiring excellent thermal resistance.

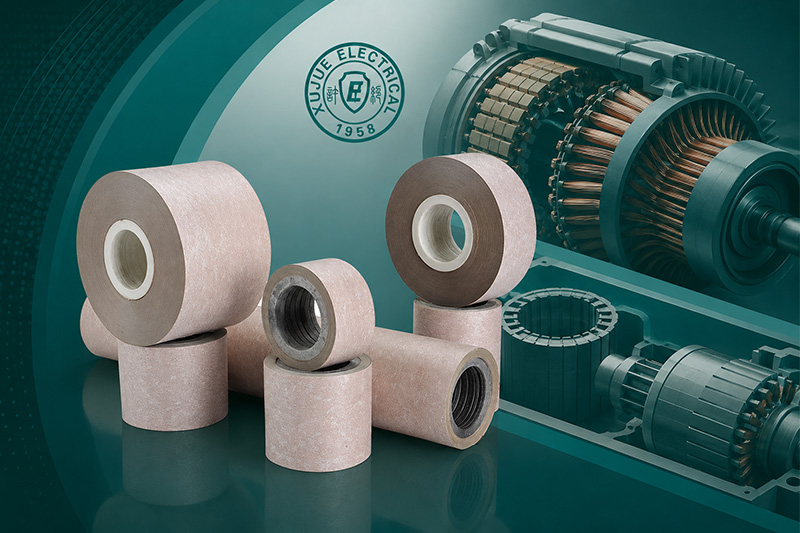

NHN insulation paper is a three-layer composite insulation material made of Nomex paper, polyester film, and Nomex paper. This structure combines the excellent thermal stability of Nomex insulation materials with the strong mechanical and electrical performance of polyester film.
As a high-temperature motor insulation paper, NHN provides outstanding resistance to heat, electrical stress, and mechanical wear. It is typically rated as a Class H insulation material (180°C), making it suitable for demanding industrial applications.
Class H motors operate under higher temperature conditions compared with standard motors. The insulation system must withstand continuous thermal stress while maintaining reliable electrical performance.
NHN insulation paper offers several key advantages:
1. Excellent Thermal Resistance
NHN insulation paper can operate at temperatures up to 180°C, helping motors maintain stable performance under heavy loads and high-temperature environments.
2. Superior Electrical Insulation Performance
With high dielectric strength and excellent insulation properties, NHN helps prevent short circuits, insulation breakdown, and premature motor failure.
3. Strong Mechanical Strength
The composite structure provides good flexibility, tear resistance, and durability, making it ideal for slot insulation, phase insulation, and layer insulation in motors.
4. Long Service Life
Using high-quality Nomex insulation materials helps reduce insulation aging caused by heat, vibration, and electrical stress, extending the operating life of motors and generators.
Due to its excellent performance, NHN is widely used in:
• High-voltage and low-voltage motors
• Industrial generators
• Traction motors
• Electrical coils and windings
• EV motor insulation systems
It is commonly applied as slot liners, interphase insulation, turn insulation, and coil wrapping materials.
Selecting the right Motor Insulation Paper is essential for improving equipment reliability and reducing maintenance costs. High-quality NHN Insulation Paper provides excellent thermal stability, electrical insulation, and mechanical protection for modern Class H motors.
XuJue Electrical supplies professional insulation solutions, including NHN, NMN, DMD insulation paper, and other electrical insulation materials, supporting motor manufacturers, transformer manufacturers, and electrical equipment producers worldwide.
