In transformer manufacturing, the quality of the insulation system directly affects electrical performance, mechanical strength, and service life. Among the various materials used for transformer winding insulation, Diamond Dotted Paper has become one of the most reliable and widely used solutions for modern transformer production.
Its unique bonding capability helps create compact and mechanically stable windings, making it an essential material for manufacturers of oil-immersed transformers, dry-type transformers, reactors, and other electrical equipment.
DDP Paper is designed with thermosetting epoxy adhesive dots arranged in a diamond pattern on the insulation paper surface.
During transformer manufacturing:
1. DDP Paper is placed between conductor layers during coil winding.
2. During the drying and curing process, the epoxy dots soften and become adhesive.
3. Under heat and pressure, adjacent winding layers bond together.
4. After curing, the winding forms a rigid and mechanically stable structure.
This bonding process significantly improves winding integrity and reduces movement caused by vibration, transportation, and short-circuit forces.
Improved Mechanical Strength
The bonding effect between winding layers greatly improves resistance to radial and axial short-circuit forces.
Reduced Coil Displacement
Loose conductors can lead to insulation damage and reduced transformer life. DDP Paper effectively minimizes winding movement during operation and transportation.
Enhanced Transformer Reliability
A stable winding structure contributes directly to long-term operational reliability and lower maintenance requirements.
Excellent Electrical Insulation Properties
DDP Paper maintains excellent dielectric performance while adding mechanical bonding functionality.
Compatibility with Transformer Oil
The material demonstrates excellent compatibility with mineral insulating oil and transformer fluids used in oil-filled equipment.
Higher Production Efficiency
Compared with traditional winding fixing methods, DDP Paper simplifies manufacturing processes and reduces assembly time.
As a high-performance Coil Insulation Paper, DDP Paper is widely used in:
• Distribution transformers
• Power transformers
• Oil-immersed transformers
• Dry-type transformers
• Reactors
• Instrument transformers
• Medium-voltage transformers
• High-voltage transformers
It is particularly suitable for applications requiring high mechanical strength and long-term reliability.

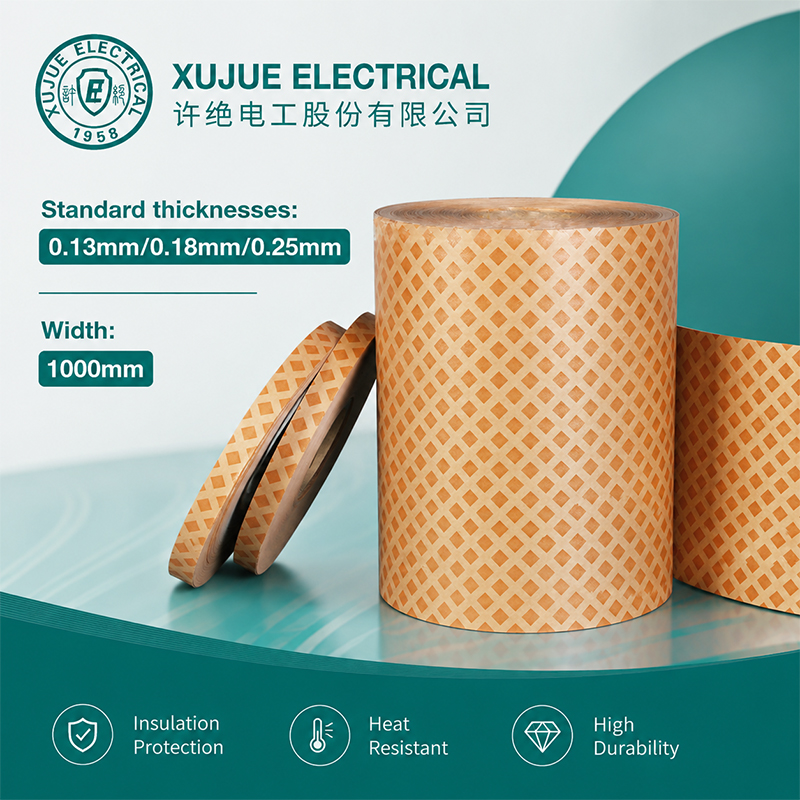

Common specifications include:
Thickness: 0.05mm, 0.08 mm, 0.13 mm, 0.18 mm, 0.25 mm,
Width: 1000mm (Customized according to winding requirements)
Thermal Class: Class A (105°C)
Base Material: Electrical insulation paper
Adhesive Type: Thermosetting epoxy resin
Custom widths and roll dimensions can be produced according to customer drawings and production requirements.
Choosing an experienced Diamond Dotted Paper Manufacturer is essential for ensuring transformer quality and production consistency.
When evaluating suppliers, consider the following factors:
• Consistent Adhesive Coating Quality
Uniform adhesive distribution ensures stable bonding performance throughout transformer production.
• Electrical and Mechanical Performance
The material should provide stable dielectric strength, insulation resistance, and mechanical durability.
• Manufacturing Capability
Advanced coating technology and strict quality control systems contribute to better product consistency and shorter lead times.
• Customization Support
Transformer manufacturers often require customized widths, roll sizes, and packaging solutions.
• International Quality Standards
Reliable suppliers should maintain strict quality management systems and provide complete technical documentation.
Modern transformers are expected to operate reliably for decades under demanding thermal, electrical, and mechanical conditions.
Compared with conventional insulation solutions, DDP Paper combines insulation and bonding functions into a single material, improving both manufacturing efficiency and transformer reliability.
For this reason, it remains one of the preferred materials for transformer manufacturers worldwide.
As transformer technology continues to evolve, insulation materials remain one of the key factors determining equipment reliability and service life.
With excellent dielectric properties, superior mechanical bonding performance, and proven field reliability, DDP Paper continues to be one of the most effective solutions for Transformer Winding Insulation and Coil Insulation Paper applications.
Working with an experienced Diamond Dotted Paper Manufacturer can help transformer manufacturers improve production efficiency, winding stability, and long-term transformer performance.
