In transformers, electrical insulation does more than prevent electrical breakdown. Insulating components must also maintain mechanical stability, dimensional accuracy, and reliable performance under demanding operating conditions.
This is why GPO-3 electrical insulation material is used in various transformer and power equipment applications.

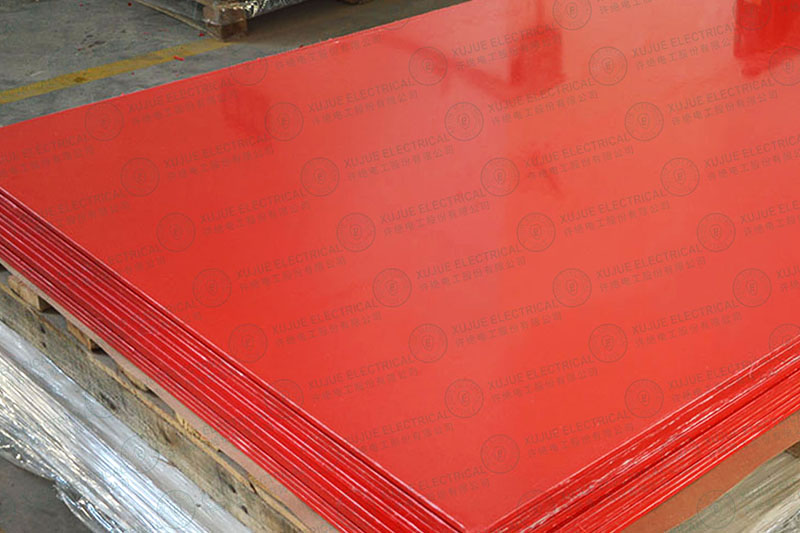

GPO-3, also known as glass polyester laminate, is a rigid glass-reinforced polyester material that combines electrical insulation with good mechanical strength and dimensional stability. It can be supplied as insulation sheets or machined into customized components according to specific equipment designs.
A transformer insulation system usually contains different materials, each serving a specific purpose. While some materials provide primary electrical insulation, rigid materials such as GPO-3 can also provide structural support and maintain the required spacing between electrical components.
Electrical Insulation
GPO-3 provides reliable electrical separation between conductive components. Its dielectric properties make it suitable for insulating structures where electrical isolation is required.
The appropriate material thickness and grade should be selected according to the transformer design, voltage level, operating temperature, and applicable standards.
Mechanical Strength
Transformer components can experience mechanical loads during assembly, transportation, operation, and fault conditions.
The glass fiber reinforcement of GPO-3 provides good mechanical strength, allowing the material to function not only as an insulating layer but also as a structural component.
Dimensional Stability
Accurate spacing and positioning are important in transformer insulation systems. GPO-3 offers good dimensional stability, making it suitable for components that require consistent dimensions and precise machining.
Its relatively low moisture absorption can also be beneficial in demanding electrical equipment environments.

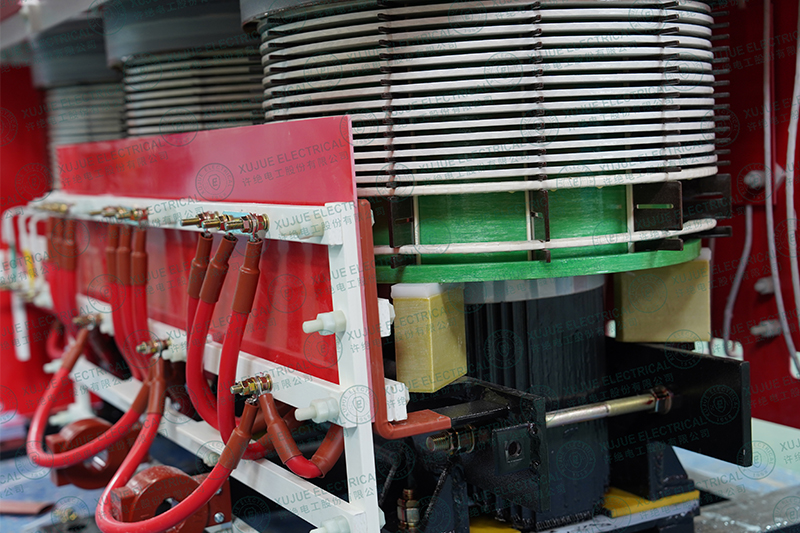

Typical GPO-3 Applications in Transformers
Depending on the transformer design, GPO-3 insulation board can be used for a variety of insulating and structural components, including:
• Insulating supports and brackets
• Busbar and bar insulation
• Interphase insulation structures
• Spacers and barriers
• Insulating plates
• Customized CNC-machined components
One important advantage of GPO-3 is its machinability. The material can be cut, drilled, milled, slotted, and CNC machined into complex geometries based on customer drawings.
This makes GPO-3 transformer insulation suitable for applications where standard insulation sheets are not enough and customized components are required.
GPO-3 as Part of a Complete Transformer Insulation System
GPO-3 is not intended to replace every type of transformer insulation material.
Transformer manufacturers may use a combination of GPO-3, pressboard, electrical laminated wood, DDP, insulating paper, and other materials depending on the location and function of each component.
GPO-3 is particularly suitable where electrical insulation, mechanical strength, rigidity, and dimensional stability need to work together.
Therefore, material selection should consider the complete insulation system rather than electrical performance alone.
The role of insulation in transformers is becoming increasingly demanding. Materials must provide reliable electrical isolation while also supporting mechanical and structural requirements.
With its combination of electrical insulation, mechanical strength, dimensional stability, and machinability, GPO-3 can be an effective solution for transformer supports, spacers, barriers, busbar insulation, and customized insulating components.
For transformer manufacturers, the right insulation material is not simply the material with the highest electrical resistance. It is the material that performs reliably in the specific position, structure, and operating conditions of the entire insulation system.
ZTELEC provides GPO-3 insulation sheets and customized GPO-3 insulating components for transformer and electrical equipment applications, with machining available according to customer drawings and requirements.
