How Insulation Materials Improve Motor Rewinding and Refrigeration Compressor Reliability
In industrial maintenance and motor repair industries, equipment reliability is closely related to the quality of the insulation system. Whether in electric motor rewinding, refrigeration compressor repair, or heavy-duty industrial motor maintenance, insulation materials play a critical role in protecting windings from heat, moisture, vibration, and electrical stress.
For many maintenance workshops, choosing suitable electrical insulation materials is not only about restoring equipment operation, but also about improving long-term performance and reducing future failures.
During motor rewinding and refrigeration compressor maintenance, technicians often encounter several common issues:
1. Insulation Aging Caused by Overheating
Continuous thermal stress can gradually damage winding insulation. When insulation paper or insulating varnish deteriorates, motors may experience reduced dielectric strength, overheating, and eventually winding failure.
This is especially common in:
• Industrial electric motors
• Refrigeration compressors
• Pumps and HVAC motors
• High-load continuous-duty equipment
Using high-temperature insulation materials such as NMN, NHN, and epoxy fiberglass laminates can help improve thermal resistance during rewinding projects.
2. Moisture and Contamination
Moisture is one of the major causes of insulation failure in motors and compressors. In humid environments, insulation systems can absorb water, leading to:
• Reduced insulation resistance
• Electrical leakage
• Partial discharge risks
• Short circuits between winding layers
Many repair companies use insulation sleeves, fiberglass tubes, and high-quality insulating paper to improve moisture resistance and electrical safety.
3. Mechanical Vibration Damage
In heavy-load motors and refrigeration compressors, vibration can damage winding structures over time. Proper insulation support materials help maintain winding stability and reduce mechanical stress.
Materials commonly used include:
• FR4 epoxy fiberglass sheets
• G10/G11 insulation laminates
• Insulating spacers
• Fiberglass reinforcement components
These materials provide both electrical insulation and mechanical strength.
Today, many motor rewinding workshops prefer insulation systems designed for higher thermal classes and better durability.

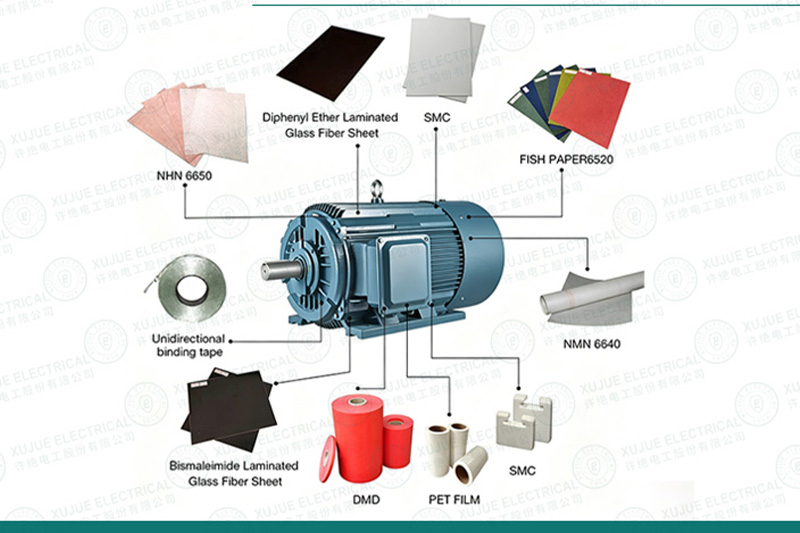

Frequently used materials include:

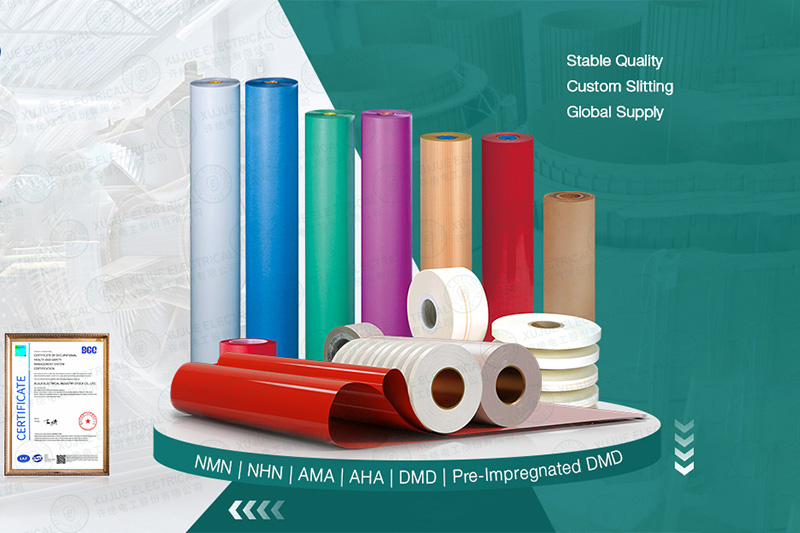

DMD / AMA / NMN / NHN Insulation Paper
Widely used for slot insulation, phase insulation, and interlayer insulation in electric motor rewinding applications.

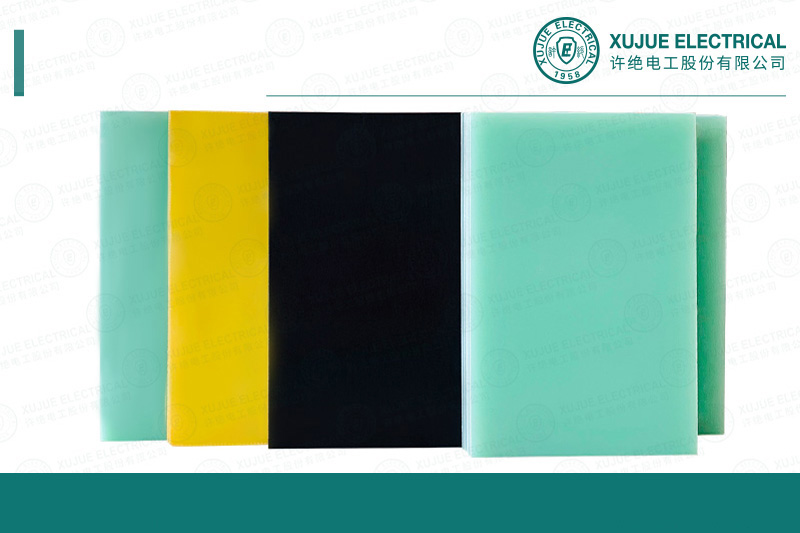

FR4 / G10 / G11 Epoxy Fiberglass Sheets
These materials offer excellent dielectric strength, heat resistance, and mechanical performance for motor insulation structures.
Insulation Sleeves and Tubes
Used for cable protection, lead wire insulation, and high-temperature electrical applications.
CNC Machined Insulation Components
Custom insulation parts help improve assembly accuracy and operational stability in motor repair projects.
For motor repair companies and refrigeration compressor maintenance workshops, selecting suitable insulation materials can help:
• Improve thermal endurance
• Increase electrical stability
• Extend motor service life
• Reduce maintenance frequency
• Improve operational safety
As industries continue demanding higher efficiency and reliability, advanced electrical insulation materials are becoming increasingly important in motor rewinding and compressor rebuilding applications.
Companies like XuJue Electrical provide insulation materials and customized insulation components for industrial electrical maintenance, motor repair, and transformer applications worldwide.
In modern motor rewinding and refrigeration compressor repair, insulation systems are far more than auxiliary materials. They directly influence electrical reliability, thermal performance, and equipment lifespan.
Whether using DMD insulation paper, FR4 epoxy fiberglass sheets, or custom insulation components, choosing the right insulation solution can significantly improve motor repair quality and long-term equipment performance.
