In modern electric motor design, slot insulation materials play a critical role in ensuring motor performance, reliability, and lifespan. Among the most widely used materials are AMA insulation paper and NMN insulation paper. These materials are commonly applied in industrial motors, motor rewinding, and custom motor manufacturing. This article explores their features, applications, and selection guidelines, helping engineers and buyers make informed decisions.

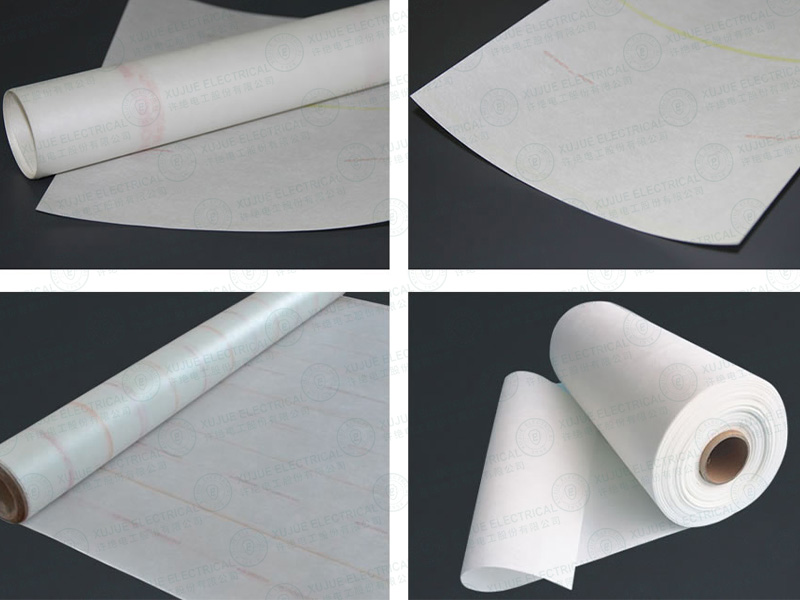

AMA insulation paper for motors is a high-performance slot insulation material offering several advantages:
• Excellent dielectric strength: Prevents short circuits and electrical leakage in motor windings.
• Thermal stability: Suitable for medium- to high-temperature motors and capable of withstanding long-term operational heat.
• Mechanical protection: Maintains stability during winding installation and under vibration conditions.

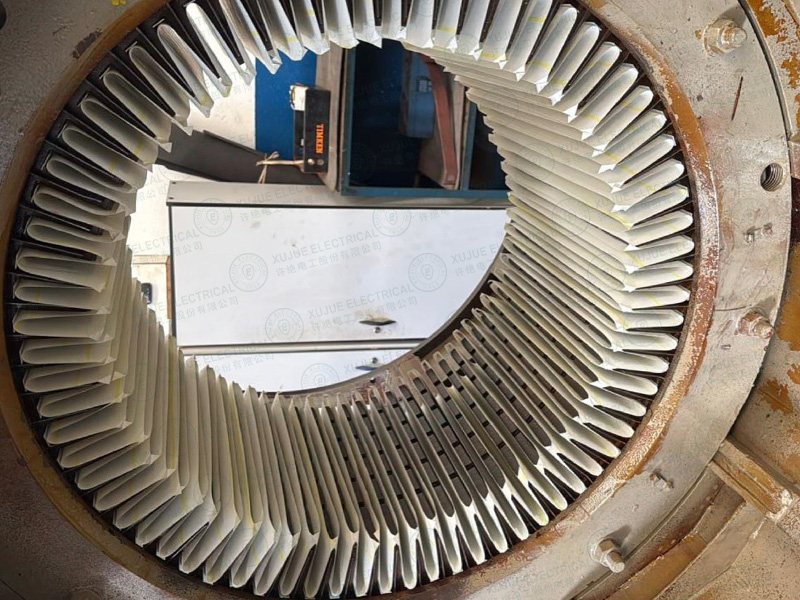

Due to these properties, AMA insulation paper is widely used in industrial motors, fans, and high-temperature electric motors. Motor repair shops also prefer AMA insulation paper for replacing aging slot insulation, which helps extend motor service life.
Similarly, NMN insulation paper is a key slot insulation material in modern motors. Its main characteristics include:
• High dielectric performance: Ensures safe operation under high voltage and high-frequency conditions.
• Temperature resistance: Suitable for Class F motors.
• Mechanical stability: Prevents damage to windings caused by vibration or stress.
NMN insulation paper is commonly used in high-performance motors, large industrial motors, and motor rewinding applications. With its excellent electrical and mechanical properties, more engineers are selecting NMN insulation paper to improve overall motor reliability.
When selecting slot insulation materials, consider the following factors:
• Operating temperature: High-temperature motors may require NMN insulation paper or heat-resistant AMA insulation paper.
• Voltage rating: High-voltage motors need materials with higher dielectric strength.
• Mechanical stability: The insulation must withstand installation and operational vibration.
• Cost and machinability: When performance is similar, selection can depend on processing requirements and material cost.
In some specialized applications, manufacturers combine DMD insulation paper or other composite insulation materials to further enhance durability and performance.
Selecting the right slot insulation material is crucial for motor design, manufacturing, and repair. Both AMA insulation paper and NMN insulation paper provide excellent electrical, thermal, and mechanical performance, making them top choices for modern motors. Engineers and procurement teams can select the appropriate material based on motor type, operational conditions, and performance requirements to ensure longer motor life and higher reliability.
