When selecting electrical insulation materials, understanding FR4 epoxy sheet properties is essential for ensuring reliability, safety, and long-term performance. Among various thermoset laminates, FR4 sheet and G10 sheet are the most widely used in electrical, electronic, and industrial applications.
This guide provides a complete breakdown—from raw materials and structure to key parameters and FR4 vs G10 differences—helping engineers and buyers make informed decisions.

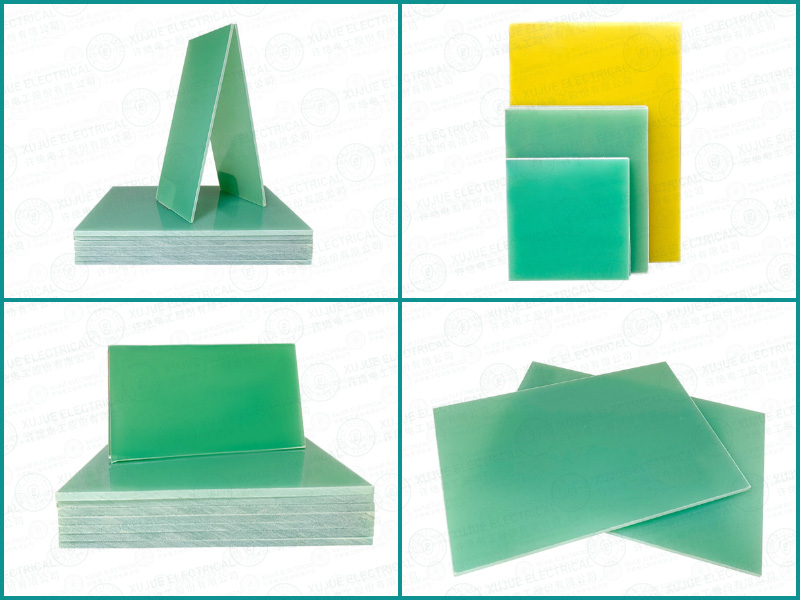

FR4 is a flame-retardant epoxy fiberglass laminate, defined under the IPC-4101 standard. The “FR” stands for Flame Retardant, indicating that the material meets specific fire resistance requirements.
Key Features:
• Self-extinguishing (UL94 V-0)
• High mechanical strength
• Excellent electrical insulation
• Stable performance under humidity and heat
FR4 is commonly used in printed circuit boards (PCB) and electrical insulation structures where both safety and performance are critical.
FR4 is manufactured by impregnating woven fiberglass cloth with epoxy resin, followed by high-temperature and high-pressure lamination.
Structure Composition:
Reinforcement layer: Fiberglass Cloth
Matrix material: Epoxy resin (provides insulation and bonding)
3. Key FR4 Epoxy Sheet Properties
Understanding FR4 epoxy sheet properties is critical when selecting materials for electrical and mechanical applications.
Typical Technical Parameters:
| Property | FR4 Value |
|---|---|
| Glass Transition Temperature (Tg) | 130°C |
| Flame Retardant Rating | UL94 V-0 |
| Bending Strength | ≥ 400 MPa |
| Density | 1.95 – 2.1 g/cm³ |
| Tensile Strength | ≥ 300 MPa |
| Insulation Resistance | ≥ 10 ¹⁰MΩ |
Key Highlights:
• FR4 dielectric constant ensures stable signal transmission in electronics
• High FR4 glass transition temperature improves thermal reliability
• Flame retardant performance enhances safety in electrical systems
4. FR4 VS G10: What’s the Difference?
One of the most common questions is: What is the difference between FR4 and G10 epoxy sheets?
Core Difference:
FR4 = Flame retardant
G10 = Non-flame retardant
Comparison Table:
| Property | FR4 Epoxy Sheet | G10 Epoxy Sheet |
|---|---|---|
| Flame Retardancy | UL94 V-0 | Not flame retardant |
| Glass Transition Temp | 130°C | Similar |
| Cost | Slightly higher | Lower |
| Typical Use | Electronics, PCB | Mechanical insulation |
Selection Tip:
Choose FR4 for fire safety and electronics
Choose G10 for mechanical strength and cost efficiency

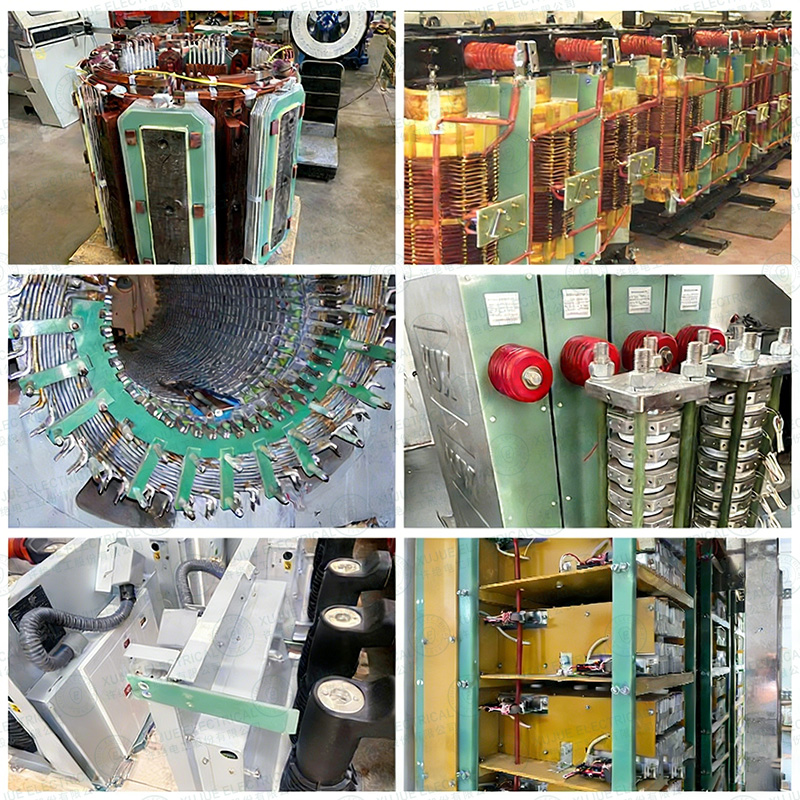

5. Typical Applications of FR4 Epoxy Sheet
Thanks to its balanced electrical and mechanical properties, FR4 is widely used across multiple industries:
Electrical & Electronics:
• Printed circuit boards (PCB)
• Switchgear insulation parts
• Transformer structural components
Industrial Applications:

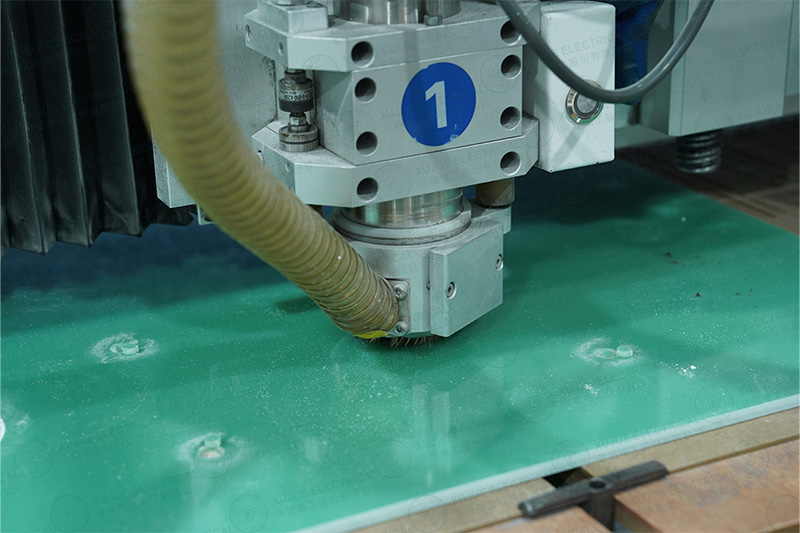

• CNC machined insulation parts
• Motor slot wedges and spacers
• High-strength structural supports
Renewable Energy & Power:
• Battery pack insulation panels
• Wind power electrical insulation components
Conclusion
FR4 epoxy sheet is a high-performance insulation material combining flame retardancy, electrical reliability, and mechanical strength. By understanding its structure and FR4 epoxy sheet properties, as well as the FR4 vs G10 difference, engineers and buyers can confidently select the right material for their applications.
If your project requires custom FR4 or G10 machining, choosing a reliable manufacturer ensures consistent quality and performance.
