In power transformers and distribution transformers, the reliability of the insulation system is one of the most critical factors determining the equipment’s long-term performance and operational safety. Transformer windings must withstand high electrical stress, thermal aging, and mechanical forces during operation. For this reason, manufacturers carefully select insulation materials that provide both electrical insulation and mechanical stability.
Among various transformer insulation materials, Diamond Dotted Paper (DDP) has become one of the most widely used materials for transformer winding insulation. Its unique bonding properties, excellent dielectric strength, and compatibility with transformer oil make it a preferred solution in modern transformer manufacturing.
This article explores what diamond dotted paper is, how it works, and why it is widely used in oil-immersed transformer insulation systems.

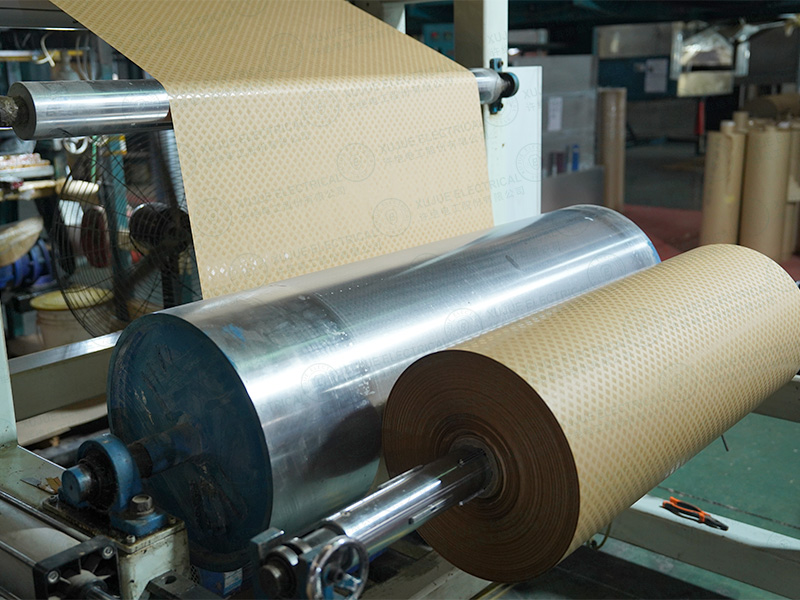

Diamond dotted paper for transformers is a specialized electrical insulation material made from high-quality kraft insulating paper coated with heat-activated epoxy adhesive. The adhesive is applied in a diamond-shaped pattern across the surface of the paper.
During the transformer coil manufacturing process, the winding assembly undergoes heating and drying. When the temperature reaches the activation point, the epoxy adhesive melts and bonds adjacent insulation layers together. After curing, the adhesive solidifies and forms a strong mechanical bond between the insulation layers.
This bonding effect is the key feature that distinguishes diamond dotted insulation paper from ordinary transformer insulation paper.
Because of its structure and bonding properties, DDP is widely used as layer insulation between transformer windings in oil-filled transformers.
A typical DDP insulation paper for transformers consists of three main components:
1. Electrical Kraft Paper
The base material is high-grade electrical kraft paper, which provides excellent dielectric strength and mechanical durability. Kraft paper is commonly used in transformer insulation systems because of its good electrical properties and compatibility with transformer oil.
2. Thermosetting Epoxy Adhesive
The adhesive coating used in diamond dotted paper is usually a thermosetting epoxy resin. This resin melts when heated and forms a permanent bond once cured.
This bonding capability helps secure the winding structure and prevents movement during transformer operation.
3. Diamond Pattern Adhesive Distribution
The epoxy resin is applied in a diamond-shaped pattern rather than covering the entire paper surface. This pattern allows the paper to maintain flexibility during winding while still providing sufficient bonding strength.
The design ensures optimal performance in transformer coil insulation systems.
Strong Bonding Between Insulation Layers
One of the main advantages of diamond dotted paper for transformer winding insulation is its ability to bond multiple insulation layers together.
During the drying and curing stage of transformer production, the epoxy adhesive melts and firmly bonds the insulation paper layers. This bonding effect creates a rigid insulation structure that helps stabilize the transformer winding.
As a result, the windings become more resistant to vibration and mechanical stress.
Improved Short-Circuit Resistance
Transformers may experience strong electromagnetic forces during short circuits or fault conditions. These forces can cause winding displacement or deformation if the insulation system is not properly secured.
Because DDP insulation paper bonds adjacent winding layers, it significantly improves the mechanical integrity of the coil structure.
This is why diamond dotted paper is widely used in power transformer winding insulation systems, where high short-circuit resistance is required.
Another important feature of diamond dotted paper used in oil-immersed transformers is its compatibility with transformer oil.
Both the kraft paper base and the epoxy adhesive are designed to maintain stability in oil-filled environments. This ensures long-term insulation reliability even under high operating temperatures.
For this reason, DDP transformer insulation paper is commonly used in oil-filled distribution transformers and power transformers.
The bonding function of diamond dotted paper helps prevent movement between winding layers during transportation, installation, and operation.
This improves the structural stability of transformer windings, reducing the risk of insulation damage caused by vibration or thermal expansion.
Stable winding structures are essential for ensuring the long service life of transformer equipment.
Another benefit of using diamond dotted insulation paper in transformer manufacturing is improved production efficiency.
Since the bonding adhesive is already applied to the insulation paper, manufacturers do not need to apply additional adhesive materials during the winding process.
This simplifies the transformer coil production workflow and improves consistency in insulation quality.
Because of its electrical and mechanical advantages, diamond dotted insulation paper is widely used in the following applications:
♦ Oil-immersed power transformers
♦ Distribution transformers
♦ Transformer coil layer insulation
♦ Transformer winding insulation systems
♦ Electrical equipment requiring bonded insulation structures

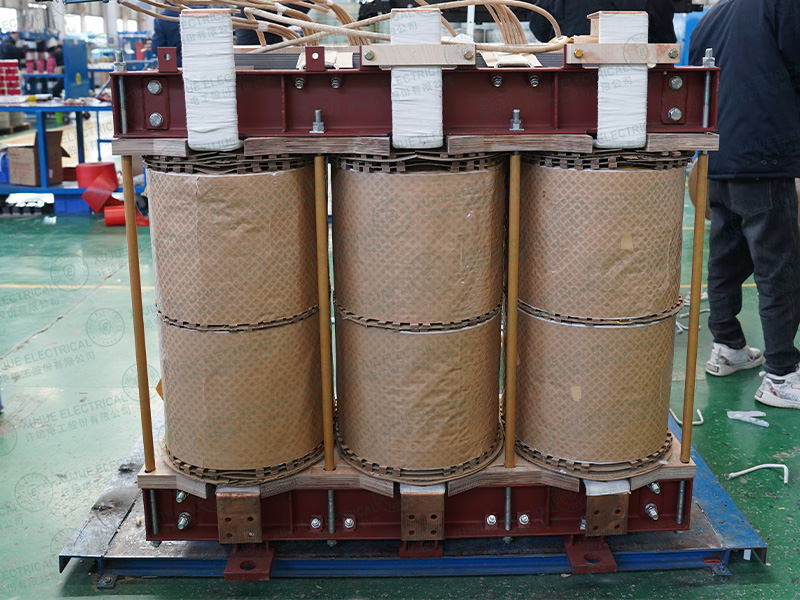

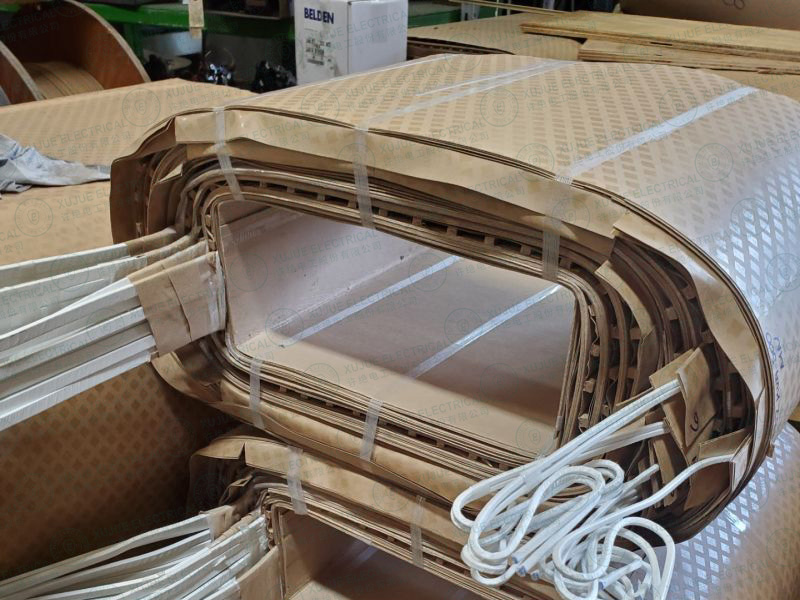

In most transformer designs, DDP is placed between winding layers to provide both insulation and bonding support.
In modern transformer manufacturing, the insulation system must provide both electrical insulation and mechanical stability. Diamond dotted paper has become a key insulation material for transformer winding systems, thanks to its unique bonding capability and strong dielectric properties.
By improving winding stability, enhancing short-circuit resistance, and simplifying the manufacturing process, diamond dotted paper for transformers plays a crucial role in ensuring reliable transformer performance.
For transformer manufacturers looking to improve insulation reliability and production efficiency, high-quality DDP insulation paper remains one of the most effective solutions available today.
