Transformer reliability depends on many factors, including electrical insulation performance, mechanical strength, thermal stability, and long-term resistance to operating conditions. Among all insulation materials used inside transformers, Transformer Pressboard plays an essential role in maintaining insulation integrity and improving transformer service life.

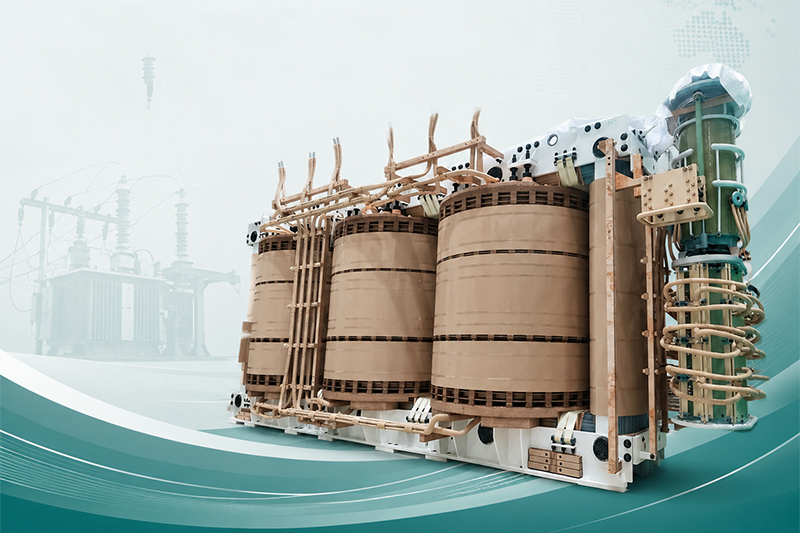

As a key part of Transformer Insulation Components, pressboard provides reliable insulation support between conductors, windings, and other internal transformer structures. It helps prevent electrical failures while ensuring stable operation under high voltage and continuous thermal stress.
For oil-immersed transformers, selecting high-quality Electrical Pressboard Presspaper for Oil-Immersed Transformers is critical because the insulation system directly affects transformer safety and performance.
During transformer operation, the insulation system is exposed to electrical stress, mechanical vibration, and temperature changes. A reliable insulation material must maintain excellent dielectric strength and structural stability throughout the transformer’s lifetime.
Transformer Pressboard improves transformer reliability through several key advantages:
1. Excellent Electrical Insulation Performance

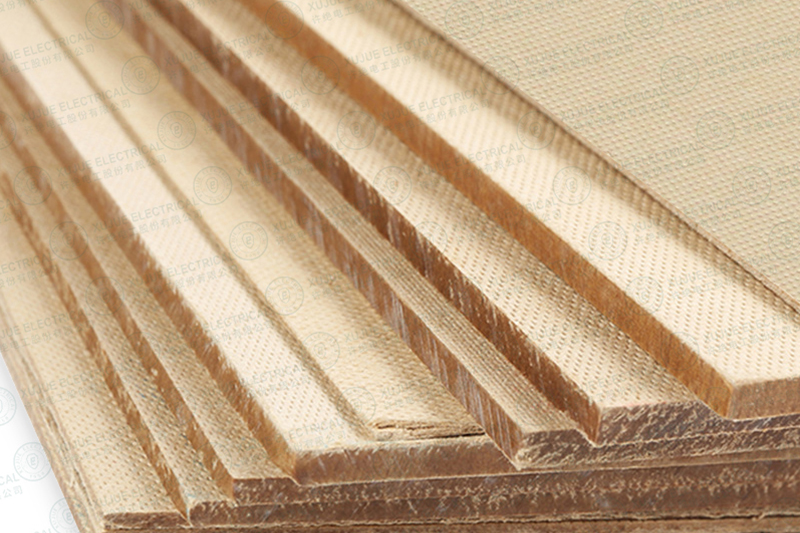

The primary function of transformer pressboard is to provide electrical insulation between different components inside the transformer.
High-quality pressboard features:
• High dielectric strength
• Low dielectric loss
• Stable insulation performance under oil conditions
• Excellent resistance to electrical stress
These properties help reduce the risk of insulation breakdown, partial discharge, and transformer failures.
2. Strong Mechanical Support for Transformer Windings
During short circuits or sudden load changes, transformer windings may experience significant mechanical forces.
Transformer pressboard components provide:
• Structural support for winding assemblies
• Protection against mechanical deformation
• Improved stability of insulation distances
This makes pressboard an important material for maintaining transformer reliability during demanding operating conditions.
3. Compatibility with Transformer Oil
Oil-immersed transformers rely on the combination of transformer oil and solid insulation materials to achieve effective insulation performance.
Electrical Pressboard Presspaper for Oil-Immersed Transformers is specially designed to work together with transformer oil, offering:
• Good oil absorption capability
• Stable performance in oil environments
• Long-term insulation protection
The combination of oil and pressboard creates a complete insulation system that improves transformer durability.
Transformer pressboard is widely used in various internal transformer applications, including:
• Transformer insulation barriers
• Interlayer insulation between windings
• End insulation components
• Cylinder insulation
• Press rings and supporting parts
• Oil duct structures
Customized transformer insulation components help transformer manufacturers achieve accurate insulation distances and improve overall transformer design reliability.
As a professional Pressboard Parts Manufacturer, XuJue provides customized insulation solutions according to transformer design requirements, including cutting, machining, and precision processing of insulation parts.
Different transformer designs require different insulation structures. Standard pressboard sheets may not always meet specific application requirements.
Customized Transformer Insulation Components provide advantages such as:
• Accurate dimensions for transformer assembly
• Better fitting with winding structures
• Reduced installation errors
• Improved production efficiency
Professional processing technology ensures that pressboard parts maintain consistent quality during transformer manufacturing.
For transformer manufacturers, insulation material quality directly affects product reliability and customer satisfaction.
A reliable Pressboard Parts Manufacturer should provide:
• High-quality insulation materials
• Precise CNC machining capability
• Customized production services
• Stable supply capacity
• Experience in transformer applications
XuJue specializes in manufacturing electrical insulation materials and customized insulation components for transformers, motors, and electrical equipment,including FR4,G10 and G11 machined insulation parts. With professional processing capabilities, we support global customers with reliable insulation solutions.
Transformer Pressboard is a critical insulation material that helps improve transformer reliability, safety, and service life. From electrical insulation protection to mechanical support and oil compatibility, high-quality pressboard components play an important role in modern transformer manufacturing.
For transformer manufacturers looking for reliable Electrical Pressboard Presspaper for Oil-Immersed Transformers and customized Transformer Insulation Components, choosing an experienced Pressboard Parts Manufacturer ensures better performance and long-term reliability.
