Insulation epoxy glass cloth tube is suitable for use as insulating structural parts in electrical equipment and can be used in humid environments and transformer oil.
Epoxy fiberglass laminated tube product introduction
Heat resistance rating: Class F
Wall thickness: ≥1.5mm
Size: Customized
Density: 1.65-1.70
Color: Green and yellow
Epoxy fiberglass laminated tube product introduction

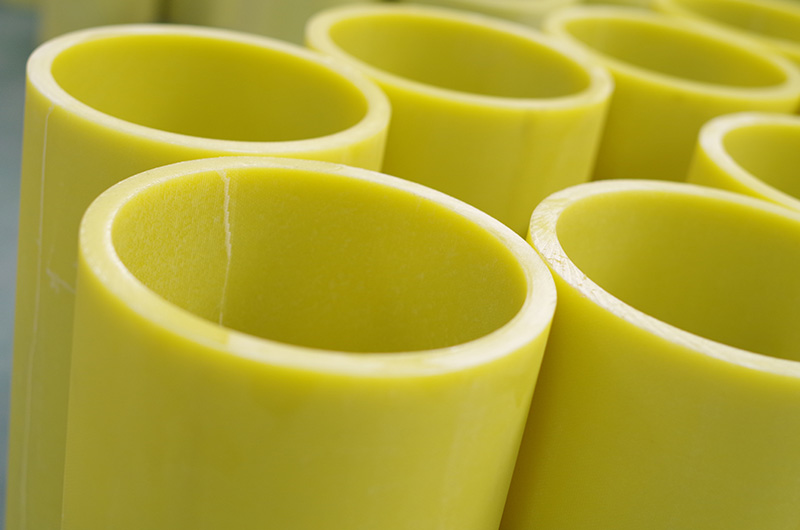

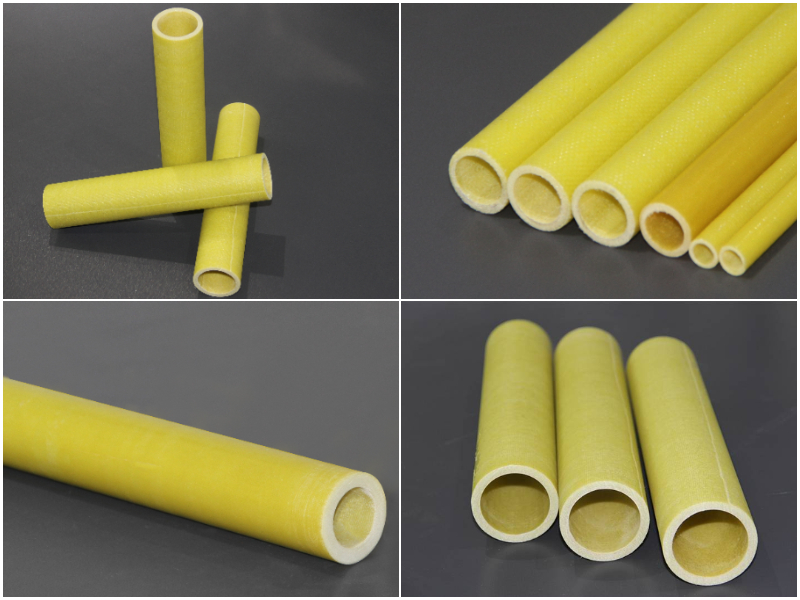

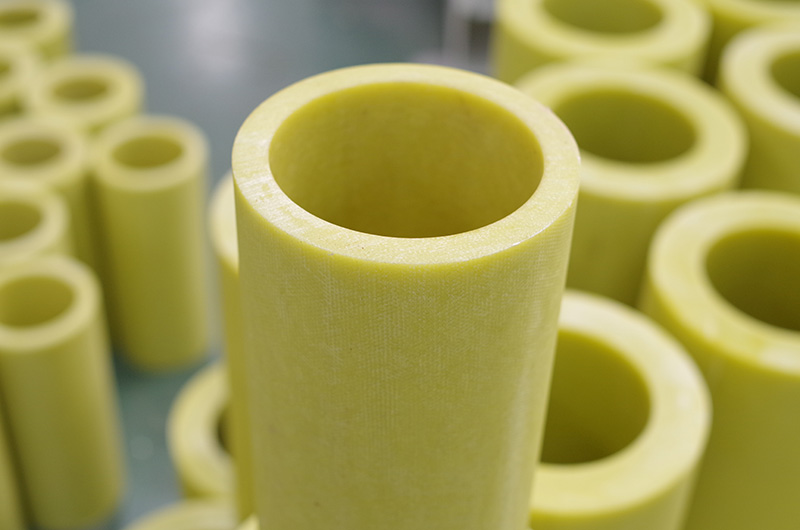

Epoxy fiberglass laminated tube is made of an electric non-alkali glass fiber cloth impregnated with epoxy resin which is processed by hot pressing in baking and forming mold. Insulation epoxy glass cloth tube has high mechanical properties, dielectric properties and good machinability. It is suitable for insulation structural parts in electrical equipment and can be used in humid environment and transformer oil.
Epoxy fiberglass laminated tube application:
Epoxy fiberglass laminated tube are suitable for high-voltage electrical appliances such as electrolytic aluminum plants, steel plants, high temperature metallurgy equipment, UHV electrical equipment, aerospace, transformers, capacitors, reactors, high voltage switches, etc.
Epoxy fiberglass laminated tube characters:
1. Epoxy fiberglass laminated tubes are various forms, and their materials can be adjusted according to the requirements of various applications. There are various resins, curing agents and modifier systems.
2. Epoxy fiberglass laminated tubes are easy to cure. Various curing agents can be used in the production. The curing properties of the insulation epoxy glass cloth tube can be cured in a wide temperature range.
3. The adhesion of the Epoxy fiberglass laminated tube is also relatively strong, so it is very convenient to install them in electrical appliances.
Advantage
Epoxy fiberglass laminated tube produced by Xujue Electrical using fiberglass cloth and epoxy resin as raw material, can be mass-produced with advanced production equipment and automatic production line.
This product has the advantages of reliable quality, smooth appearance, uniform color, neat cutting ends and small thickness tolerance with strict manufacturing technology.
Meanwhile, Xujue Electrical is equipped with advanced ventilation facilities and dust-removing equipment to keep the products dry and clean.
The mechanical and electrical properties of products are superior to the similar one of other companies.
Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.
Property Parameter
Executive Standard：JB-T3172-1999(3520) GB-T5132-2009 IEC61212-2006
| Number | Item | Unit | Value |
| 1 | Density | g/cm3 | 1.7-1.8 |
| 2 |
Flexural Strength at Perpendicular Lamination （Under Normal） |
MPa | ≥70 |
| 3 | Axial Compressive Strength | MPa | ≥60 |
| 4 |
Breakdown Voltage at Parallel Lamination （Transformer Oil at 90℃） |
Kv | ≥35 |
| 5 |
Dielectric Strength at Perpendicular Lamination （Transformer Oil at 90℃） |
KV/mm | 14.2 |
| 6 | Dielectric Loss Factor（50Hz） | – | ≤0.03 |
| 7 | Water Absorption | % | ≤1 |
| 8 | Thermal Index | – | 130 |
Product Specification
| Name | Unit | Value |
| Minimum Wall Thickness | mm | 2 |
| Maximum Wall Thickness | mm | 200 |
| Minimum Bore Size | mm | 6 |
| Maximum Bore Size | mm | 1200 |
| Length | mm | 1000-1200 |
Epoxy fiberglass laminated tube packing and delivery:
Packing details: packed in cartons for epoxy fiberglass laminated tube
Port: Qingdao, Shanghai, Tianjin
Lead time: shipped in 15 days after payment
